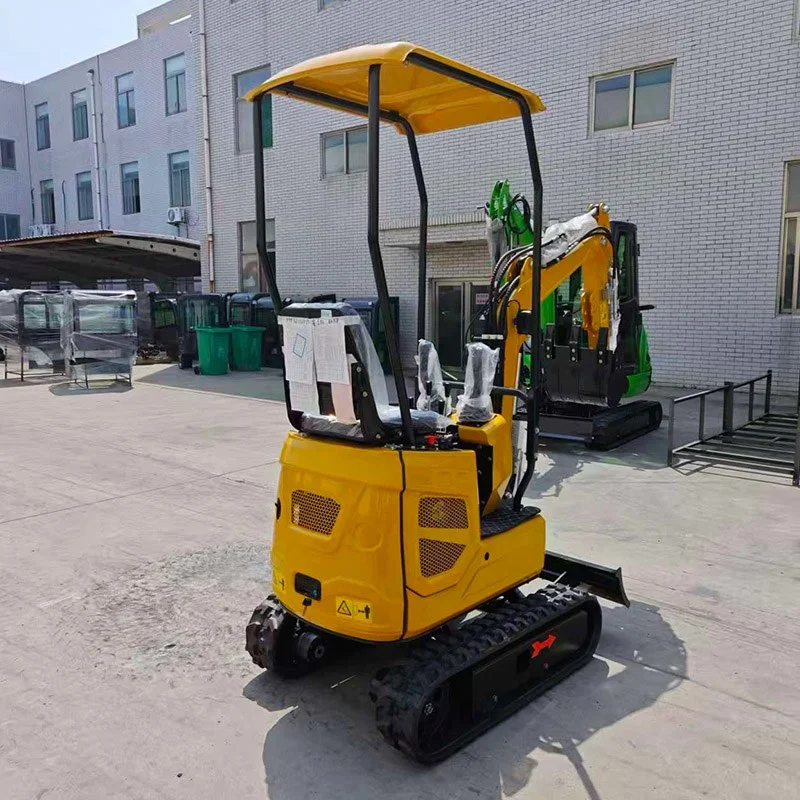

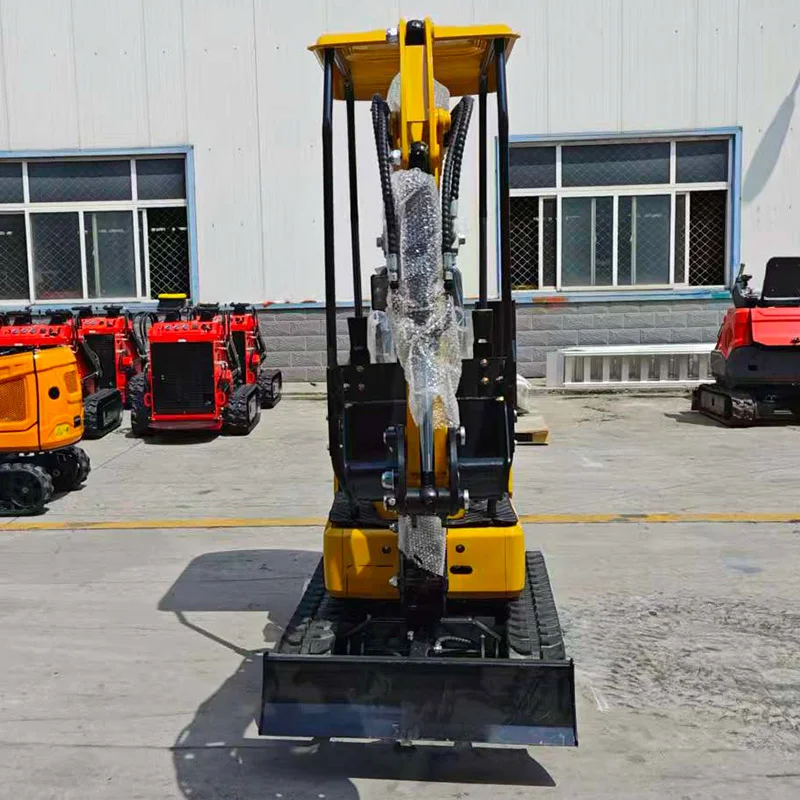

1 Ton Mini Excavator for Farm Use Extremely compact and highly maneuverable; powerful air-cooled diesel engine; robust and durable, easy to operate; rubber tracks prevent damage to the ground; suitable for home gardens, agricultural planting, landscaping, etc.
1 Ton Mini Excavator for Farm Use an air-cooled diesel engine, requiring no water tank, is unaffected by extreme cold, and is simple and reliable to maintain. The hydraulic system employs a Tianjin Tianji single-gear pump, coupled with an 8-way mechanical multi-port valve, providing direct control and sensitive response. With an overall width of only 920mm and equipped with 180×72×37 rubber tracks, it is maneuverable and does not damage the ground. In terms of working capacity, it has a maximum digging depth of 1.7 meters, a maximum digging radius of 2.9 meters, a maximum unloading height of 1.15 meters, and a bucket capacity of 0.025m³, easily handling tasks such as orchard ditching, greenhouse tilling, indoor demolition, and small-scale earthmoving projects. The fuel tank is available in 5.5L or 8L configurations to meet different range requirements.
The pin shaft is equipped with an oil nipple, which serves to provide even better lubrication.
The ergonomic design of the seat, which can provide the driver with good waist and back support, and the driver will not feel tired even after long driving.
Built-in steel core, wear-resistant and durable, easy toreplace,and also can choose to replace the steel track
| Machine Parameters | |||||
| gross weight | 1000KG | Engine maximum power | 7.6/kw | ||
| walking speed | 0-2km/h | maximum engine speed | 3000/rpm | ||
| Bucket capacity | 0.025m³ | Main pump type/model | Single gear pump/Flow rate 21L/min |
||
| Maximum digging height | 2260mm | Main pump brand | Tianjin Tianji | ||
| Maximum unloading height | 1150mm | Multi-way valve | 8-way mechanical valve | ||
| Maximum digging depth | 1700mm | Machine Dimension | 2924*920*2284mm | ||
| Maximum excavation radius | 2900mm | rubber tracks | 180*72*37 | ||
| bulldozer blade width | 920mm | Fuel tank | 5.5L | ||
| Engine Model | KP192/Diesel/Air-cooled | Hydraulic oil tank | 8L | ||
All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
A: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
A: Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
A: Yes, we support mass production. We can support customization (one piece is enough), but we can’t provide free samples.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish Other customizable options
